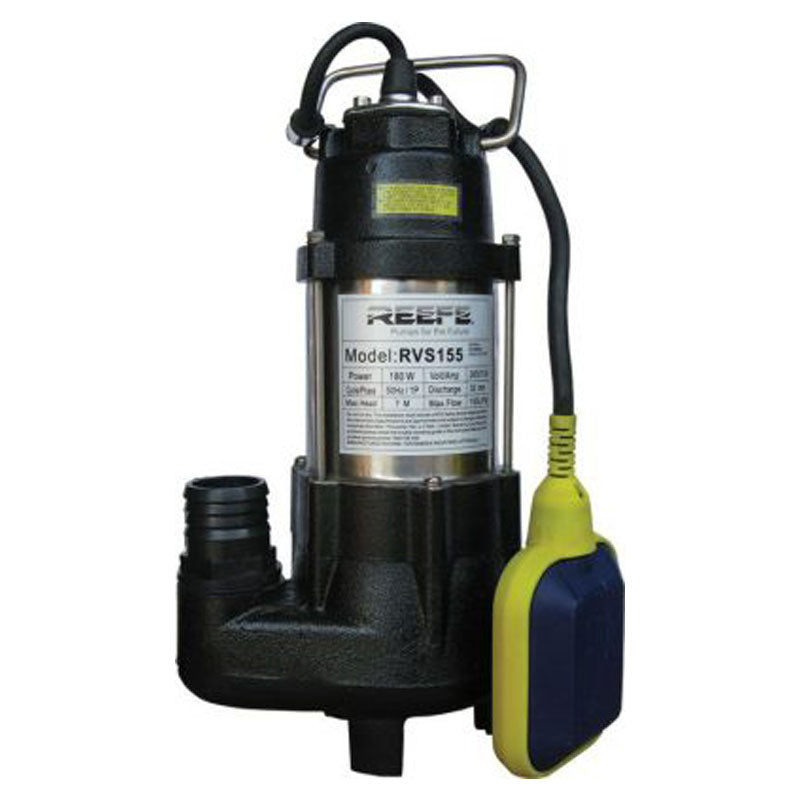

REEFE RVS155 Premium Vortex Sump Pump with Float Switch 155L/min
REEFE RVS155 Premium Vortex Sump Pump with Float Switch 155L/min
Couldn't load pickup availability
This REEFE submersible vortex pump has been specifically designed for sump pump out applications. Solid cast-iron and stainless steel construction for robust and reliable pumps on which you can depend. Capable of handling soft solids up to 15mm.
| CODE | 8409 | MODEL | RVS155 |
| AMPS | 1.5 | P2 | 0.18 |

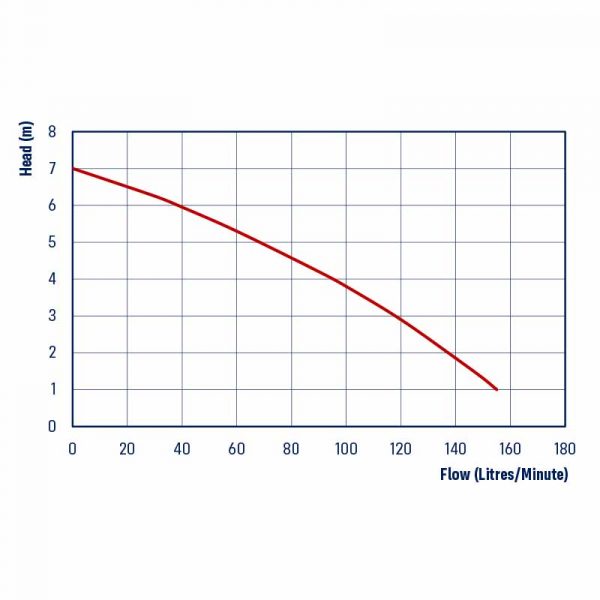

| RATED FLOW | 90 L/min | RATED HEAD | 4.0m |
| MAXIMUM FLOW | 155 L/min | MAXIMUM HEAD | 7.0m |
| SOFT SOLIDS | 15mm | CABLE LENGTH | 10m |
| OUTLET | 32m | WEIGHT | 8.5kg |
| SIZE LxWxH (mm) | 220 x 120 x 340 |
FEATURES & BENEFITS
Solid handling 15mm
High performance
Thermal overload protection
10m power cable, H05RN-F
Includes 3 different hosetails – 25 / 32 / 40mm
Includes lifting rope
Max liquid temperature 40°C
Max ambient temperature 40°C
Electrical Safety Approval to AS/NZS 60335.2.41
CONSTRUCTION
Stainless steel motor housing and shaft
Technopolymer vortex impeller with special sand-flinging design to reduce clogging and wear
Dual silicon carbide/ceramic mechanical seal with oil chamber
MAC 3 type float switch, depth adjustable
Ingress Protection IP68
Insulation Class B
Cast iron base and outlet
APPLICATIONS
Dirty water transfer
Grey water
Household wastewater
Sump draining
Pool emptying
Wastewater systems
