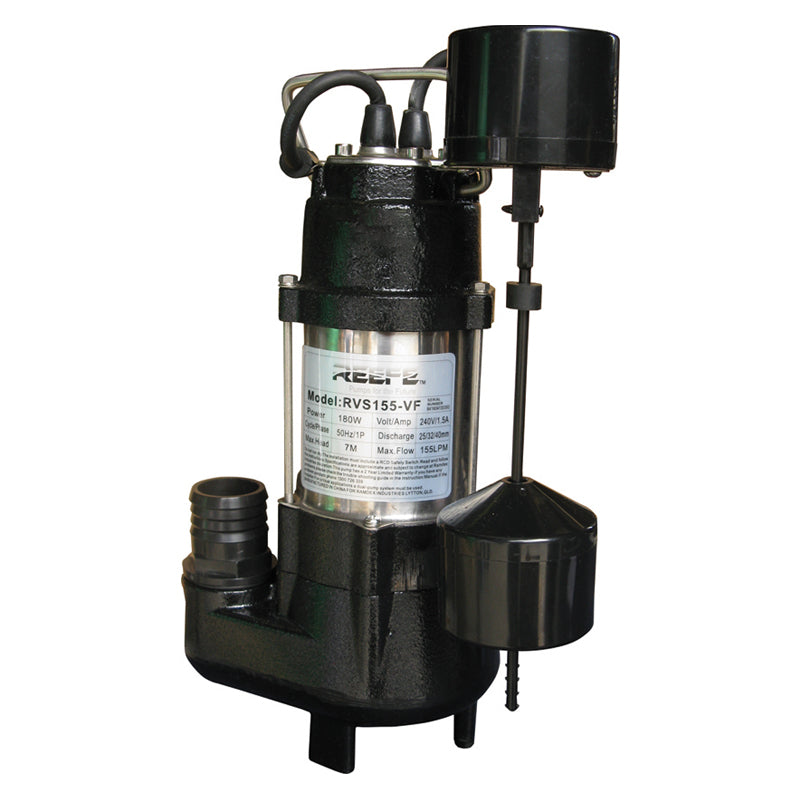

RVS155VF Vortex Sump Pump with Vertical Float 155L/min
RVS155VF Vortex Sump Pump with Vertical Float 155L/min
Couldn't load pickup availability
The REEFE vortex vertical float pump, is the same great quality and performance as the standard RVS range, but with the advantage of the vertical float which make this more versatile than ever.
| CODE | 8416 | MODEL | RVS155VF |
| AMPS | 1.5 | P2 | 0.18 |

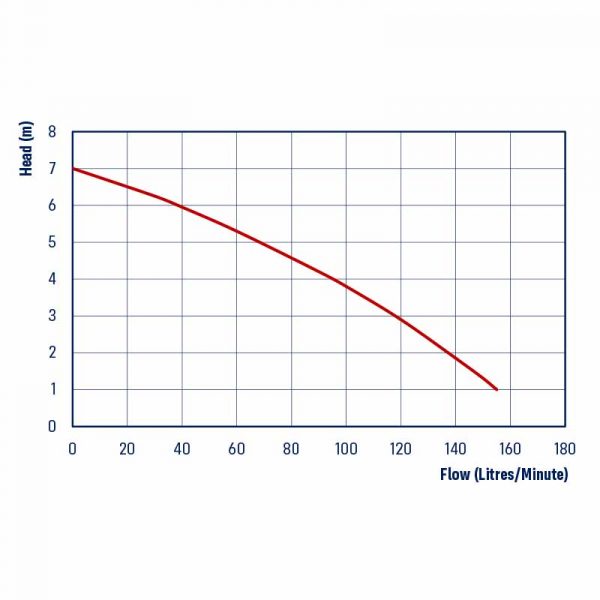

| RATED FLOW | 90 L/min | RATED HEAD | 4m |
| MAXIMUM FLOW | 155 L/min | MAXIMUM HEAD | 7m |
| SOFT SOLIDS | 15mm | OUTLET | 32mm |
| CABLE LENGTH | 10m | WEIGHT | 8.5kg |
| SIZE LxWxH (mm) | 220 x 190 x 350 |
FEATURES & BENEFITS
Low power consumption
Thermal overload protection
Soft solids handling 15mm
High performance
H05RNF 10m power cable
Includes hosetail
Maximum liquid temperature 40°C
Adjustable “stop” vertical float switch
Electrical Safety Approval to AS/NZS 60335.2.41
CONSTRUCTION
Stainless steel motor housing & shaft
Technopolymer impeller
Dual mechanical seal in oil chamber
Cast iron base and outlet
Minimum pit dimension 300mm sq
Ingress Protection IP68
Insulation Class B
APPLICATIONS
Wastewater treatment system
Confined spaces
Small or shallow pits / sumps
Narrow irrigation chambers
